150KG commercial High-end Smart automatic Sliding Door operator 4200mm

Good quality Automatic Glass Sliding Doors for sales
Good quality Automatic Glass Sliding Doors for sales
F-150W automatic sliding door operator is much better and appearance design is very nice. Low noise soft start , pass test . The price is good .

—— Bryan Walker

I'm Online Chat Now

150KG commercial High-end Smart automatic Sliding Door operator 4200mm

China 150KG commercial High-end Smart automatic Sliding Door operator 4200mm supplier

Large Image :  150KG commercial High-end Smart automatic Sliding Door operator 4200mm

Product Details:

Place of Origin: Guangdong China
Brand Name: Caterly
Certification: CE,ISO9001,SGS,CQC
Model Number: F-150W

Payment & Shipping Terms:

Minimum Order Quantity: 10 Sets
Price: USD 225/Set to USD400/Set
Packaging Details: Bubble bag and cardboard boxes and wooden case
Delivery Time: 3-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000Set per month
Contact Now
Detailed Product Description
Type: Sliding Place Of Origin: Guangdong China (Mainland)
Brand Name: Caterly SurfFace Finishing: Finished
Material: Aluminum Alloy Position: Commercial
Door Material: Glass

F-150W High-end Smart automatic Sliding Door operator 4200mm
Feature and Advantages
-  Flexible system
-  With CATERLY power drive:Dynamically controlled acceleration and deceleration curves for particularly  powerful operation-and with emergency power backup in the form of a rechargeable battery pack
-  Industrially prefabricated and tested MiniDriveUnit
-  Integrated CATERLY connect and work bus system for easy integration of CATERLY connect and work sensors and actuators
-  Commissioning via integrated display
-  Can be combined with all customary door profiles
-  Fully comprehensive range of accessories
-  Reliable investment due to compliance with all relevant CE standards



Components

1. Controller 9. Carrier
2. Transformer10. Return Pully
3. Motor 11. Service cover holder
4. Belt12. End stop
5. Hanger sets13. Door bracket
6. Cover 14. Belt connection
7. Track 15. Belt tensioning device
8. Battery Pack(optional) 16. Glass clamping rail



Optional equipment

Electro-mechanical lock(bistable)
Manual release of electro-mechanical lock
Light barriers
Backup battery pack


Technical Parameter




Door parametersF-150WBasic module
1-panel sliding door Modular design
- Clear passage width LW700-2000mmMicroprocessor-controlled function programs
- Door panel weight, max.1X150kg- Off
2- panel sliding door - Automatic
- Clear passage width LW -800-3000mm- Permanent open
- Door panel weight, max.2X150kg- Partial opening
Technical data

Connection
-Electro-mechanical locking decive
-Light barriers


Height125Adjustment of parameters via integral display&keypad
Overall depth600mm 24V output for external loads
Opening & closing force,max89N Readout error memory with error codes
opening speed10-38cm/s
open time0-15sec.
Main voltage, frequency220V, 50/60 Hz
Power consumption70W

Specifications

Automatic door operator
1. European Design
2. Modular design
3. CE certificated
4. 2years warranty



Packaging & Delivery

Packaging Details:Carton or wooden packing or as per customer's request.
Delivery Detail:3 days after receiving customers' payment for smaple


Our company are professional Automatic door manufacturer. we get specialized machine,skilled worker to make high quality and low price products.
You are welcomed to visit our factory and website to get more details.

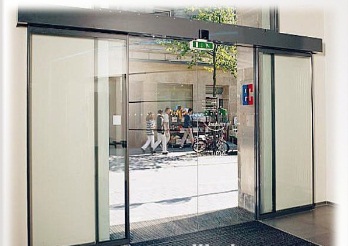

Product Image :
150KG commercial High-end Smart automatic Sliding Door operator 4200mm
