Model Number:
YW-125
Contact Us

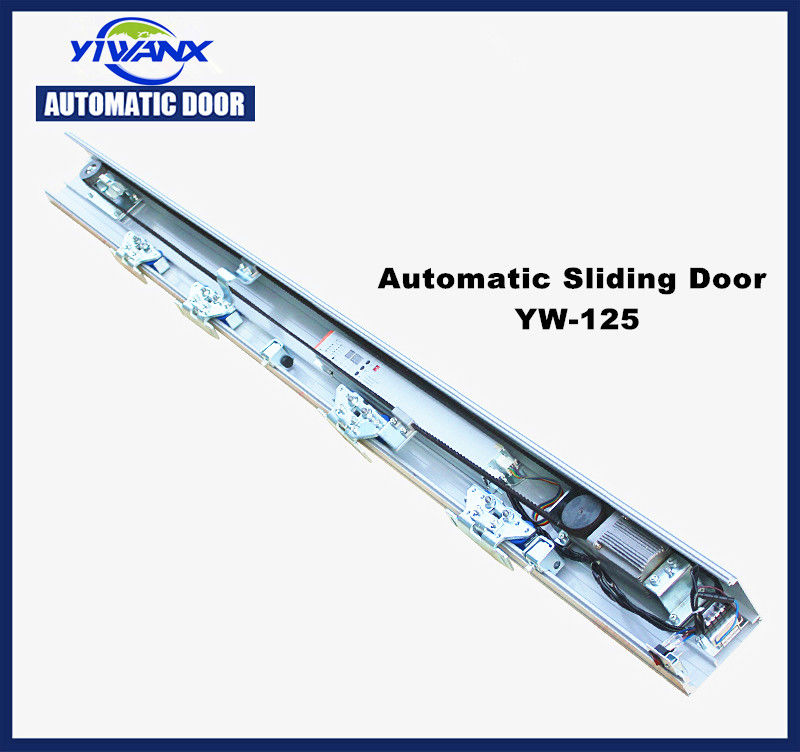

The YW-125 automatic sliding door system is specially designed for light-load automatic glass doors. It is mainly composed of digital microprocessor controller(easy setting, checking and adjusting), and space-saving square motors(open the door to the maximum), and also more optional accessory connection terminals. This type automatic sliding door system is suitable for various kinds of pedestrian automatic glass doors without heavy load. They are widely used in office buildings, banks, restaurants, fruit shop,etc. They are characterized by the following characteristics:
** ISO9001,SGS&CE certificated
** Modular design, microprocessor intelligent control, easy to install, operate and maintain
** High efficiency and low enengy consumption
** Low noise operation
** Microwave motion sensor, ensure safe passage, 10G or 24G optional
** Low carbon design, environment friendly
** With high-class rubber hanger roller, adopt imported roller bearing
** A highly intelligent multi-CPU control system, providing easy adjustable function and high security performance
** Low noise design (<45db)
** Energy-saving, sound proofing
** When power off, backup batteries could be used to keep the door in normal operation
** Cost effective, wide applications
| Gate sliding modes | Single-opening Double-opening | |
| Gate leaf weight | ≤1*125 kg ≤2*120 kg | |
| Gate leaf width | 600-1200mm 500-1150mm | |
| Opening speed | 150-450mm/s(Adjustable) 150-420mm/s(Adjustable) | |
| Closing speed | 100-420mm/s(Adjustable) 100-400mm/s(Adjustable) | |
| Motor | 24V 55W brushless DC motor | |
| Hold open time | 0-9second(Adjustable) | |
| Impact function | Rebounding up on impact | |
| Voltage | AC220V 50Hz-60Hz | |
| Operating Temperature | -20°C~60°C | |
Main components of automatic sliding door system (YW-125):
| Motor | 1 |
| Controller | 1 |
| Microwave motion sensor | 2 |
| Driven wheel / Idler pulley | 1 |
| Connector | 1 |
| Hangers | 4 |
| Link span(left) | 1 |
| Link span(right) | 1 |
| Stopper | 2 (left/right) |
| Belt tensioner | 1 |
| Fastenings | 1 set |
| Aluminium beam | 2×2.1m |
| Installation Manual & Warranty Card | 1set |
Optional accessories of automatic sliding door system(YW-125)
| Details of Optional accessories | |
| Model No. | Specification |
| PT01 | |
| AK02 | Access keypad(plastic) Power: 12VDC User capacity: 500 users |
| FC04 | Remoter(4 buttons) Power: 12~36V 433MHZ Learning code type Transmission distance: 25M Function status: full open, half open, lock, automatic |
| FP02 | Finger printer(stainless) Power: DC 12V Weight: 500g Size: 115×70×35mm(L×W×H) |
| UPS | Backup battery One set of changing electronic part and two pcs 12V battery. When power off, it can make the door work 3 hours or open and close 100 times. |
| PB03 | Wired push button switch(plastic) Weight: 96g Size: 200×50×12.5mm(L×W×H) |
| LC02 | Electric lock Power: DC 12V Working current: 800mA Installation hole:212(L)*35(W) Deep into wall around 43mm Panel dimension:205×34×42mm(L×W×H) |
| PB04 | Touchless switch Power: DC 12V Working type: infrared induction Working distance: 1-15cm Weight: 83g Size: 89×89×37mm(L×W×H) |
| FG01 | Framed door guider Max. 40mm |
| GC02 | Glass clamp(1m) Connect glass and hangers for frameless glass door One pc for one glass door leaf |
Sales & Services
Hefei Yiwan Architectural Decoration Engineering Co., Ltd.takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.
YIWAN have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
Package
Standard(Assembly completely)
4230×210×140mm, 31kg
Kit package(Track separate packing)
4230×210×130mm,18kg
680×280×180mm, 12.2kg
OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
YIWAN will never stop the pursuit of innovation with style. YIWAN would develop more innovative and market-oriented products in the future.
| YIWAN Competitive Advantages | |
| 1. | We are direct manufacturer & we have professional self design team, which is capable of satisfying customers' most demanding needs |
| 2. | Our products have World Class Quality Testing. We have certificates of SGS,CE, ISO9001. |
| 3. | We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation. |
| 4. | Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct. |
| 5. | We have large production capability and sufficient safety stock to ensure quick lead-time. |
| 6. | We are constantly innovating to launch new products every year. |
| 7. | We provide 24-month warranty for all of our products. |
