Exquisite Technology Two-wing Automatic Revolving Door for Office Buildings

Exquisite Technology Two-wing Automatic Revolving Door for Office Buildings

2 Wings Automatic Revolving Door

Digital Control Automatic Revolving Door

Place of Origin:

Hefei Anhui Province, China

Brand Name:


Model Number:

automatic revolving door

Contact Us

Request A Quote
Product Details
Open Style:
Power Driven
Surface Finishing:
300~600 Mm Height
CE, ISO9001
Special Function:
Pedestrian Access
Made In Germany
Stainless Steel, Powder Coating, Anodized
Power Of Motor:
550 W
Sea, Air
Transport Package:
Export Wooden Carton
Hefei China
HS Code:
Production Capacity:
20 Sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1 set
3500-27500 USD/set
Packaging Details
wooden case
Delivery Time
15-20 Days
Payment Terms
Supply Ability
20 Sets/Month
Contact Us
Product Description

Yiwan Two-wing Revolving Door is the perfect solution for keeping dust, noise, rain, sleet and snow from entering buildings, which effect energy efficient and enviroment protection; Under the sliding door status, the more capacious and comfortable passage is available for large crowds traffic flow.

Two-wing Automatic Revolving Door is the best option for the main entrance of grand commercial buildings such as the hotel, office buildings, shopping malls, exhibition center, because of its excellent characters e.g. the splendid and noble appearance, stable and reliable operation, exquisite technology, safety in use.

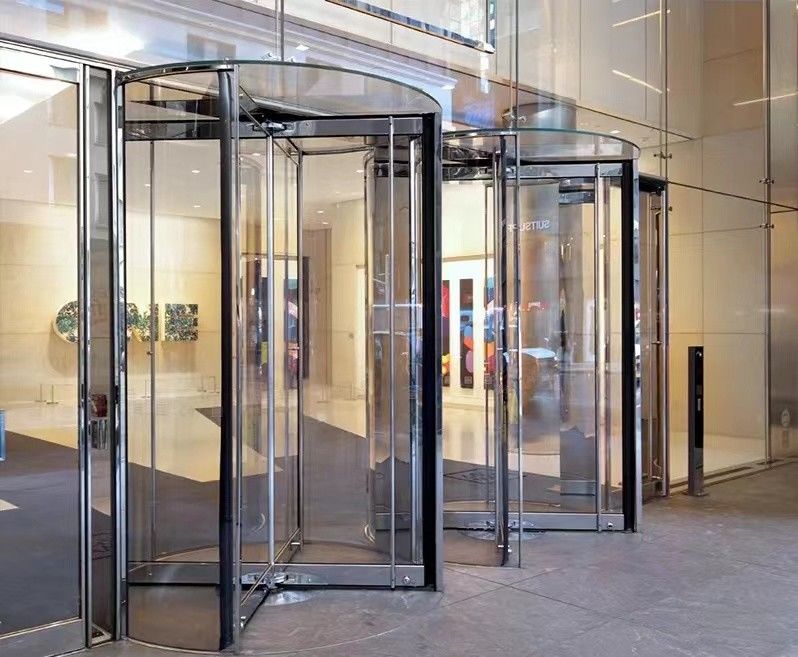

Exquisite Technology Two-wing Automatic Revolving Door for Office Buildings 0

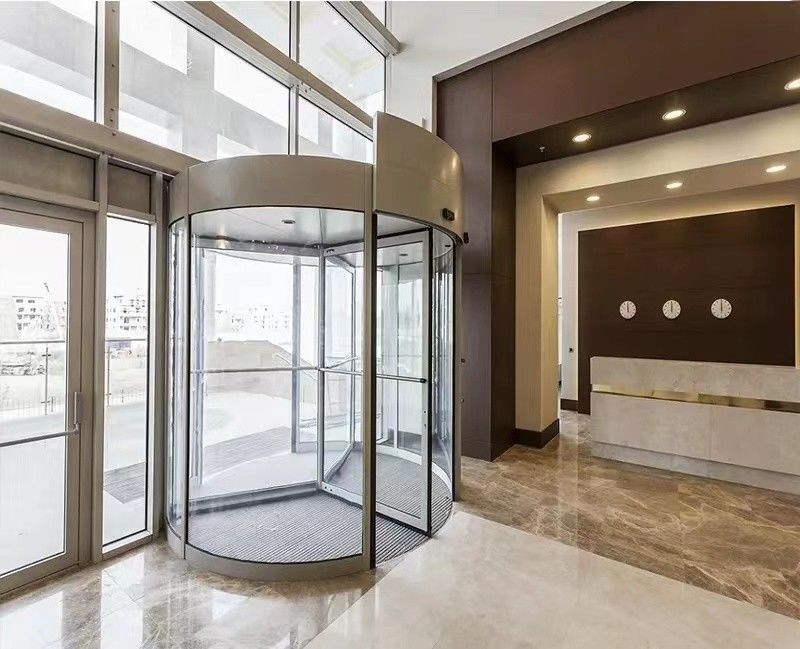

Exquisite Technology Two-wing Automatic Revolving Door for Office Buildings 1

Outer Diameter(mm) Inner Diameter(mm) Passage Height(mm) Canopy Height(mm) Total Height(mm) Entrance Width(mm)
3000 2810 2300-3300 300-600 2400-4000 1328
3200 3010 1428
3400 3210 1528
3600 3410 1628
3800 3610 1728
4000 3810 1828
4200 4010 1928
4400 4210 2028
4600 4410 2128
4800 4610

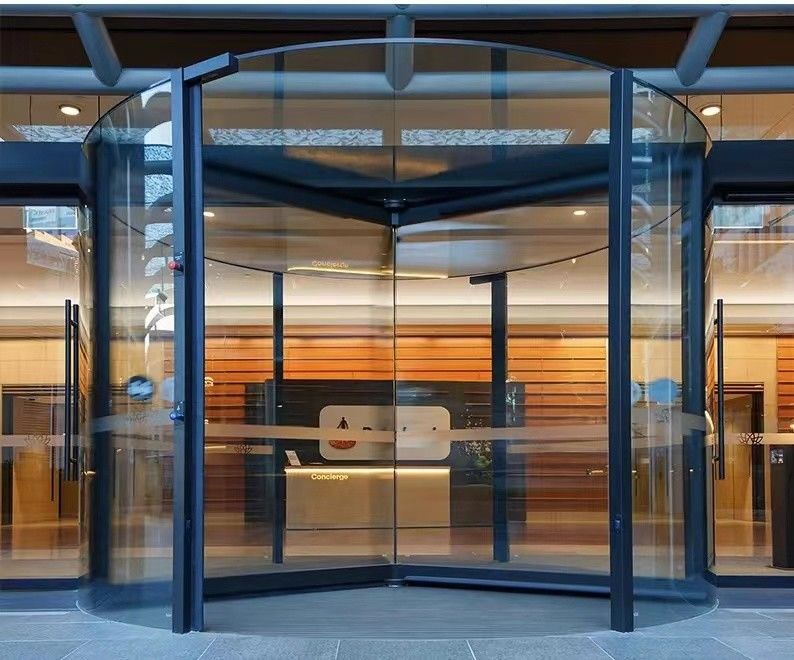

Exquisite Technology Two-wing Automatic Revolving Door for Office Buildings 2

Advantages and Features

Aluminum alloy die-casting molding frame, high strength, bright color, good surface finish.

A variety of materials and colors of surface decoration available: hair lines stainless steel, mirror stainless steel, aluminum
fluorocarbon spraying, anodic oxidation, copper decoration etc.

The glass adopts tempered glass or special glass.

The ceiling is composed of radial wedge-shaped panels that coordinate with the material and decoration of the entire door.

Canopy made with plywood or metal plate for dustproof, outside made sealed for shower-proofing.

Energy saving, quiet, stable, long service life.

Digital program control system, easy operation.

Anti-squeeze function, anti-strike function and safety detection functions.

Slow speed for disabled. When the aged, children or disabled passing the door, press the emergency button, the door speed will slow
down and rotate for 1 round, after that restore their normal function.

Revolving speed automatic lifting and adjusting function. Change the sensor condition according to the weather and visitors flow rate, to save time and energy.


Product Features and Functions:

External Framework Bearing

Two working models: revolving door, Sliding door

Windbreak,Dust Proof and Noise Insulation Function which effect the energy conservation and environment protection

Safety : Anti-bump,anti-squeeze,anti-strike

Access Control Function

Operation modes Selection

the Emergency Stop Button

the Disable Button

Battery Backup
Lockup/Night Function

Stop as Open State

Stop as Close State

Speed adjustable

Revers Function

Fire Alarm

Two Show cases

LED Display

Digital control system, easy to operate.


Technical Data

Power supply : 220V/50Hz
Rated current : 3.8A
Motor : 370W*2
Revolving door drive unit : 550W
Down lights : 40W
High speed adjustment range(revolving door) : 3- 4 r.p.m
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m

Aluminum thickness≥3mm
System: Panasonic(Japan)
Glass: 6-8mm Glass
Surface treatment: #304 1.2mm Stainless Steel (Colour: optional)
Ceiling: Powder coated 1.2mm Aluminum Plate
Light: Energy-saving lamp
Dustproof Plate: 12mm Density Board,
Control Operation LCD Panel: Panasonic Digital LCD screen,display and control the operation status of the door
Push Button: 1 set for each door(Install inside)
