Place of Origin:
HeFei China
Brand Name:
YIWANX
Certification:
CE, ISO, SGS
Model Number:
Sliding
Contact Us

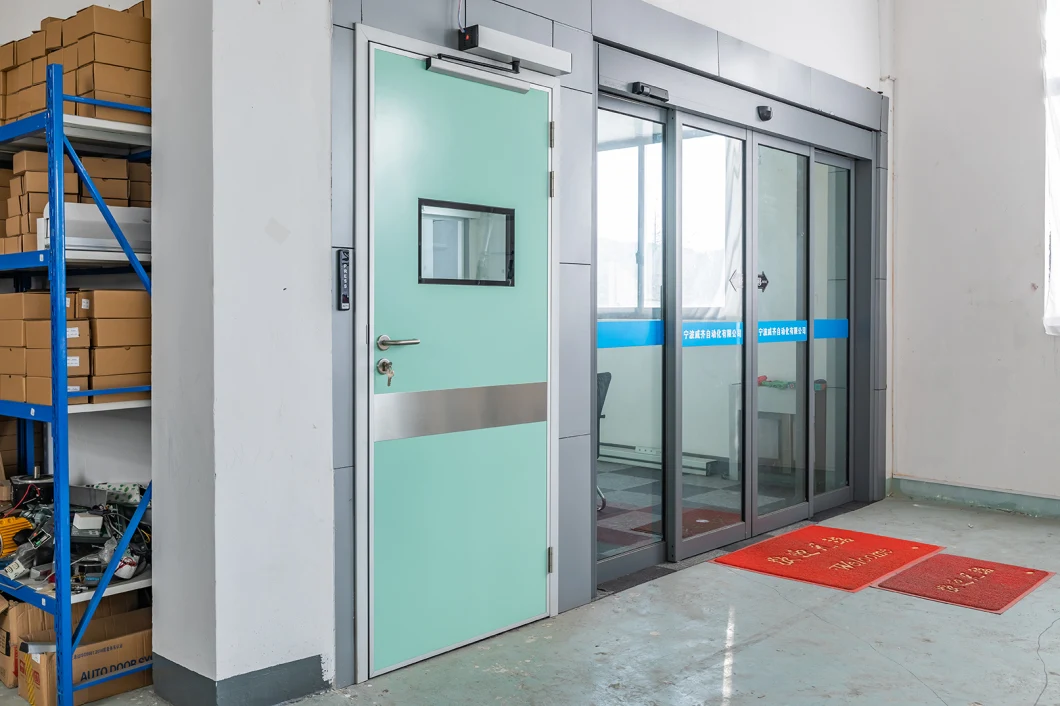

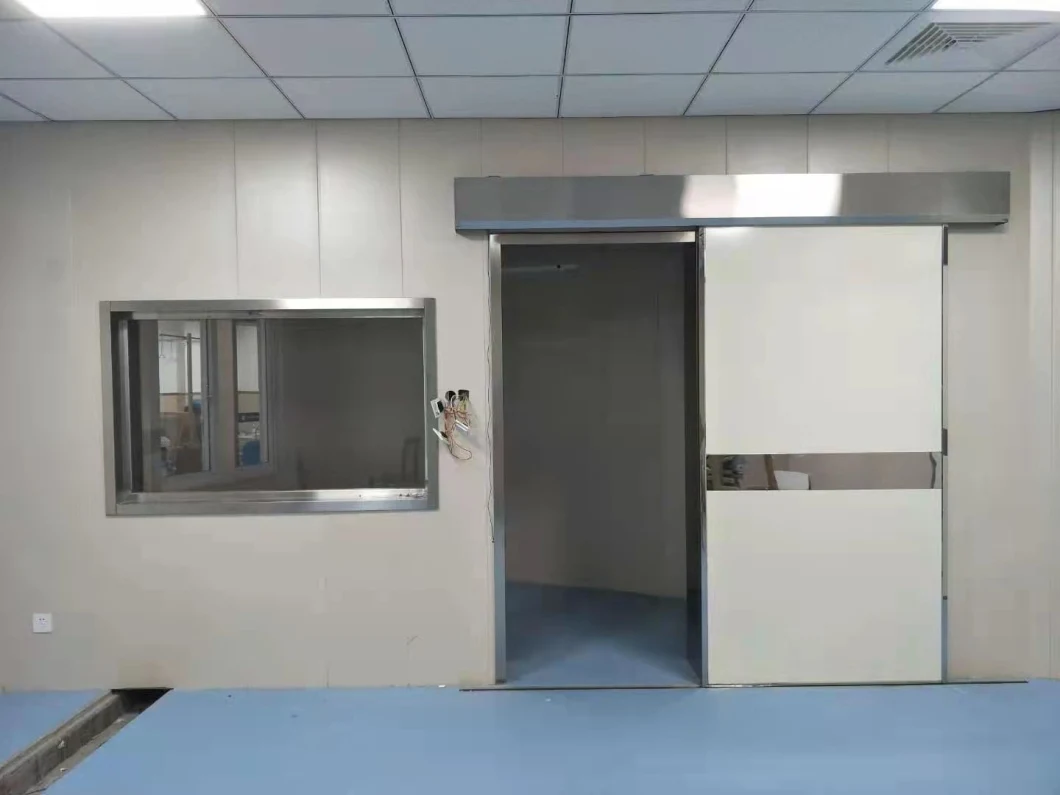

Stainless steel SS304 automatic hermetic doors are specially designed for areas where hygiene control, noise reduction and air tightness is in critical demand. YIWAN hermetic door series include on-wall type hermetic sliding door, in-wall type hermetic sliding door, X-Ray Lead-shielding automatic door, ICU hermetically sealed door, etc.
Functional characteristics:
Intelligence
With user-oriented concept, multiple intelligent and protective devices are configured into the door operator. Automatic intelligent control system adopts built-in microcomputer chip to set the parameters. User can select the ideal opening and closing way to operate the door. Automatic door can maintain the best performance and high intelligence.
Safety
The sliding operator can work with security sensor which can prevent people from nipping, so it is safe for users. With inner unique electric lock, the operator can lock the door without mechanical locks. We also can provide emergency power when power fails, it can let the door open in urgent situations.
Reliability
Thanks to professional mechanic design and high-efficiency DC brushless motor, the sliding operator can work smooth and stable with low noise for a long time. With the help of advanced synchronous belt and perfect design of power supply circuit , the door moves very and quitely and stably.
Energy Saving
With the help of semi-open function, the sliding operator can automatically set the width of the entrance, so this can help to keep the temperature and humidity inside the room and to minimize the costs of the air conditioner as well.
Convenience
All the adjustments can be implemented with remoter controller. It is extremely convenient to operate the door. Open and close smoothly with high efficiency. Fast installation and easy replacement for assembly parts.
Technical specifications of Stainless steel SS304 automatic hermetic doors
| Gate sliding modes | Single-opening | Double-opening |
| Gate leaf weight | ≤1*200 kg | ≤2*160 kg |
| Gate leaf width | 600-1200mm | 500-1150mm |
| Opening speed | 150-500mm/s(Adjustable) | 150-450mm/s(Adjustable) |
| Closing speed | 100-450mm/s(Adjustable) | 150-430mm/s(Adjustable) |
| Motor | 24V 100W brushless DC motor | |
| Opening time | 0-9s(Adjustable) | |
| Automatic function | Automatically reverse upon obstruction | |
| Reverse time | Less than 1 second |
|
| Power voltage | AC220V 50Hz-60Hz | |
| Ambient temperature | -20°C~60°C | |
Components:
| Standard packing list | |
| 100W Motor | 1 |
| Controller | 1 |
| Microwave motion sensor | 2 |
| Driven wheel / Idler pulley | 1 |
| Connector | 1 |
| Hangers | 4 |
| Link span(left) | 1 |
| Link span(right) | 1 |
| Stopper | 2 (left/right) |
| Belt tensioner | 1 |
| Fastenings | 1 set |
| Aluminium beam | 2×2.1m |
| Installation Manual & Warranty Card | 1set |
Details of Optional accessories |
|
| Model No. | Specificati |
| PT01 |
Safety beam(photocell)
Power: DC12~36V
Max transmission distance: 10m Type: single beam(one pair eyes) |
| AK02 | Access keypad(plastic) Power: 12VDC User capacity: 500 users |
| FC04 | Remoter(4 buttons) Power: 12~36V 433MHZ Learning code type Transmission distance: 25M Function status: full open, half open, lock, automatic |
| FP02 | Finger printer(stainless) Power: DC 12V Weight: 500g Size: 115×70×35mm(L×W×H) |
| UPS | Backup battery One set of changing electronic part and two pcs 12V battery. When power off, it can make the door work 3 hours or open and close 100 times. |
| PB03 | Wired push button switch(plastic) Weight: 96g Size: 200×50×12.5mm(L×W×H) |
| LC02 | Electric lock Power: DC 12V Working current: 800mA Installation hole:212(L)*35(W) Deep into wall around 43mm Panel dimension:205×34×42mm(L×W×H) |
| PB04 | Touchless switch Power: DC 12V Working type: infrared induction Working distance: 1-15cm Weight: 83g Size: 89×89×37mm(L×W×H) |
| FG01 | Framed door guider Max. 40mm |
| GC02 | Glass clamp(1m) Connect glass and hangers for frameless glass door One pc for one glass door leaf |
| Competitive Advantages | |
| 1. | We are direct manufacturer & we have professional self design team, which is capable of satisfying customers' most demanding needs |
| 2. | Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001. |
| 3. | We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation. |
| 4. | Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct. |
| 5. | We have large production capability and sufficient safety stock to ensure quick lead-time. |
| 6. | We are constantly innovating to launch new products every year. |
| 7. | We provide 24-month warranty for all of our products. |
