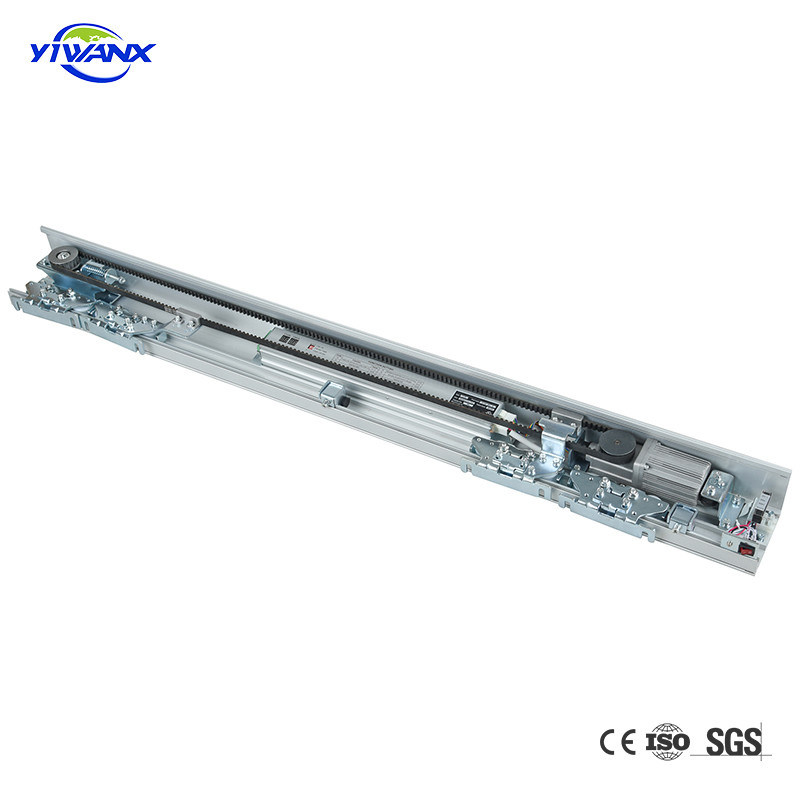

YIWAN Adjustable Door Automation System Automatic Sliding Door

YIWAN Adjustable Door Automation System Automatic Sliding Door

Telescopic door automation system

YIWAN door automation system

YIWAN automatic telescopic sliding door

Place of Origin:

China

Brand Name:

YIWAN

Certification:

CE, ISO, SGS

Model Number:

YW-155

Contact Us

Request A Quote
Product Details
Opening Time:
0-9second(Adjustable)
Opening Temperature:
-20~60
Transport Package:
Inner Caron Box+Bubble Wrap+ Outer Carton Box
Trademark:
YIWAN
HS Code:
90328990
Package Size Per Unit Product:
423.00cm * 21.00cm * 14.00cm
Gross Weight Per Unit Product:
31.000kg
Payment & Shipping Terms
Minimum Order Quantity
10 sets
Price
US $260-300 / Set
Packaging Details
Inner Caron Box+Bubble Wrap+ Outer Carton Box
Delivery Time
15-25days
Payment Terms
T/T
Supply Ability
10000 Units/Month
RELATED PRODUCTS
Contact Us
Product Description

YIWAN Adjustable Door Automation System Automatic Telescopic Sliding Door

Product Description

YIWAN Automatic door system(YW-155) can be used for single leaf sliding door or bi-parting sliding door. it can be also applied to framed or frameless glass door. With specially-designed 4.2m alminium track and cover(standard length 4.2m, could be cut as per customer's need), low-noise round type 24V DC 60W/100W brushless motor, non-digital or digital microcomputer controller, 24G microwave induction sensors. optional remoter control device or function keypad switch, it is easy to install, debug, operate and maintain and able to meet various requirements of different automatic sliding doors.

Basic Info.

Model NO.
YW-155
Electric Current Type
AC
Door Sliding Modes
Double-Opening, Single-Opening
Door Leaf Weight
2*120 Kg, 1*125
Means of Transportion
Ocean, Air
Opening Time
0-9second(Adjustable)
Voltage
AC220V 50Hz-60Hz
Opening Temperature
-20~60
Special Features
Anti-Pinch Function
Transport Package
Inner Caron Box+Bubble Wrap+ Outer Carton Box
Specification
customize
Trademark
yiwanx
Origin
Hefei, Anhui, China
HS Code
90328990
Production Capacity
10000 Units/Month

Packaging & Delivery

Package size per unit product
423.00cm * 21.00cm * 14.00cm
Gross weight per unit product
31.000kg

Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)
Technical Data of Automatic Sliding Door System (YW-155):
Gate sliding modes Single-opening Double-opening
Gate leaf weight ≤1*155 kg ≤2*145 kg
Gate leaf width 600-1200mm 500-1100mm
Opening speed 150-600mm/s(Adjustable) 150-550mm/s(Adjustable)
Closing speed 120-550mm/s(Adjustable) 120-500mm/s(Adjustable)
Motor 24V 60/100W brushless DC motor
Hold open time 0-9second(Adjustable)
Special Function Anti-Pinch Function
Voltage AC220V 50Hz-60Hz
Operating Temperature -20°C~60°C
Automatic Sliding Door System (YW-155) Details:
Place of Origin Anhui, China (Mainland)
Brand Name YIWANX
Model Number YW-155
Open Style Automatic induction
Position Commercial premises, hotels, banks, office buildings
Surface Finishing Finished
Type Sliding Doors
Sliding Door Type Single-leaf of bi-parting glass doors
Door Material Glass
Power supply 220~230V,50/60HZ
Model Automatic Sliding Door
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)
Features of Automatic Sliding Door System (YW-155):
**With high elasticity and density hanger roller. Dual system to prevent door dislocation during operator and easy to adjust door alignment and positioning.
**Various accessories available: mode selector, lock device, battery pack and sensors.
**Vibration-proof structures.
**Warranty: 18months
**1 million times of tests passed.
**Motor power control system with automatic reversal for user safety
**Anti-pinch function makes the operator more safe and more reliable.
**Door will be able to operate about 200 times(open and close) during a power failure.
**Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.
**Good solution for accessories, for example, finger printer, remote control, push button, access keypad, security sensor, fire alarm, digital wireless video entry and so on.
Components list of Automatic Sliding Door System (YW-155):
Standard packing list
55W/100W Round Type Motor 1
Digital Controller 1
Microwave motion sensor 2
Driven wheel / Idler pulley 1
Connector 1
Hangers 4
Link span(left) 1
Link span(right) 1
Stopper 2 (left/right)
Belt tensioner 1
Fastenings 1 set
Aluminium beam 2×2.1m
Installation Manual & Warranty Card 1set
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)

Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)Optional accessories:
Details of Optional accessories
Model No. Specification
MS01 Microwave sensor(10GHZ/24GHZ)
Power: AC/DC 12~36V
Radio frequency:10.525GHZ/24.125GHZ
Protection level: IP54
Size:131×61×46mm(L×W×H)
Max installation height: 4M
Detection range and sensibility can be adjusted.
MS02 Microwave sensor(10GHZ/24GHZ)
Power: AC/DC 12~36V
Radio frequency: 10.525GHZ/24.125GHZ
Protection level: IP54
Size:110×64×42mm(L×W×H)
Max installation height: 4M
Detection range and sensibility can be adjusted.
MS03 Microwave Sensor(24GHZ) with German Innosent Chip
Power: AC/DC 12~36V
Radio frequency: 24.125GHZ
Protection level: IP54
Size:121×80×51mm(L×W×H)
Max installation height: 4M
Detection range and sensibility can be adjusted.
IS01 Infrared sensor
Power: AC/DC 12~36V
Sensing distance:0.2m-2m
Protection level: IP54
Size:221×74×35mm(L×W×H)
Max installation height: 3M
Detection range and sensibility can be adjusted.
The product can be used in the occasion where the building environment is narrow and close to street and the accuracy detection ability is demanded .Detection sensing distance adjustable, with high anti-interference , easy operation and reliable
IS02 Combined microwave&infrared sensor
Power:AC/DC 12~36V
Transmitting frequency:24.125GHZ
Protection level:IP54
Size:262×55×44mm(L×W×H)
Max installation height: 3M
Combined radar activation and Infrared safety sensor is used for automatic sliding door, folding door and curve door. Radar technology is for door activation. Infrared technology is for door safety entrance. Unique anti-clip function design, no need extra safety beam sensors.
Have function of background self-learn. Can learn background automatically when power on. Suit all kinds of occasions.Always self-correcting once be influenced by quake, distortion, move, dark and sunshine. Ensure the sensor can work durable.
Microwave technology adopts the Germany Microwave sensor module, not influenced by temperature and humidity with reliable working performance.
PT01 Safety beam(photocell)
Power:AC/DC12~36V
Max transmission distance: 10m
Type: single beam(one pair eyes)/ double beam(2 pairs eyes)
Receiver dimension:123*50*32mm
Electric eyes:19(length)*13(diameter)mm
FS01 Foot sensor switch
Power:AC/DC12~36V
Recommended installation height: 0.3M from the ground
Active infrared ray of modulation-demodulation controlled by microcomputer. Widely used in the operating room of hospital and laboratory to prevent hand pollution.
FC01 Five-range programmed function switch
Power: 12~36V
Function status: full open, half open, exit only, lock, automatic
Size:113×63×20mm(L×W×H) function switch against passwords, safe and reliable. With memory function in case of power failure. Password can be reset..
FC02 Five-range function keypad
Power: 12~36V
Functions: full open, half open, exit only, lock, automatic
Size:86×86×10mm(L×W×H)
KP01 Function key switch(five-range)
Power: AC/DC 18~36V
Functions: full open, half open, exit only, lock, automatic
Size:86×86×10mm(L×W×H)
KP02 LED key switch(five-range)
Power: AC/DC18~36V
Size:92×92×46mm(L×W×H)
Functions: full open, half open, exit only, lock, automatic
This product is unidirectional command switch for automatic door accessory using. With special design with bottom panel, it is convenient for different installation occasions.
KP03 Five-range LCD key switch
Power: AC/DC12~36V
Size:92×92×33mm(L×W×H)
Functions: full open, half open, exit only, lock, automatic
This product is unidirectional command switch for automatic door. With TFT true color liquid display, special design with bottom panel, it is convenient for different installation occasions.
PB07 Infrared hand sensor switch
Power: AC/DC12~36V
Size:92×92×33mm(L×W×H)
Transmit distance: 1-20cm, can be set according to actual occasion.
FC04 Learning code remote control device(4 channels)
Power: 24VDC
433MHZ Learning code type
Transmission distance: 25M
Function status: full open, half open,lock, automatic
FC05 Learning code remoter control device(4 channels)
Power: 24VDC
433MHZ Learning code type
Transmission distance: 25M
Function status: full open, half open,lock, automatic
FP01 Fingerprint access control device / time attendance machine
Power supply:12VDC
Fingerprint capacity:1000
Recorded capacity:100,000
Dimension:180*82*53(L×W×H)
Identification mode: Fingerprint / ID card / Password
Voice prompt: available
PB04 No touch hand sensor switch
Power: DC 12V
Working type: infrared induction
Working distance: 1-15cm, can be set according to actual occasion.
Weight: 83g
Size: 89×89×37mm(L×W×H)
PB05 Infrared touchless hand sensor switch
Power: AC/DC12~36V
Working type: infrared induction
Transmit distance: 1-15cm, can be set according to actual occasion.
Size:113×63×20mm(L×W×H)
Weight: 110g
PB06 Wireless push button switch
Power: AC/DC12~36V
Hold open time:1-9S adjustable
Pushing panel:203(L)*41(W)*12.5(H)mm
Receiver:123(L)*50(W)*32(H)mm
Widely be used for auto door and door control equipment. With the wireless signal output,door can be open by the pushing the panel. Easy installation,specially designed for the occasions which have difficulty in wire embedding.
AK02 Access keypad(plastic)
Power: 12VDC
User capacity: 500 users
Open method:Card, password, both.
1000 pcs card info can be stored
Dimension:117×117×21(mm)
Specific designed for office, housing, security system and building's access . It not only can work by reading card or password ,but also can control electric lock and auto-door.
AK03 Access keypad
Power: 12VDC
Storage capacity: 1000 users
Open method:Card, password, card+password.
Dimension:115×75×21(mm)
AK04 Access keypad
Power: 12VDC
Storage capacity: 1000 users
Open method:Card, password, card+password.
Dimension:110×75×25(mm)
FP02 Finger printer(stainless)
Power: DC 12V
Memory capacity:120
Weight: 500g
Size: 115×70×35mm(L×W×H)
UPS Automatic door backup lithium battery
Input voltage:220VAC, 50HZ
Output voltage:DC12V/5.2A, DC24V/2.6A
Size: 243×59×45mm(L×W×H)
When power off, it can make the door work 7 hours
or open and close 500 times.
PB03 Wired push button switch(plastic)
Weight: 96g
Size: 200×50×12.5mm(L×W×H)
PB02 Wired push button switch(stainless) with blue LED
Weight: 65g
Size: 84×84×35mm(L×W×H)
PB01 Wired push button switch(stainless) with blue LED
Weight:50g
Size: 84×84×27mm(L×W×H)
LC01 Metal manual lock
Lock manually, open with key.
LC02 Electric lock
Power: DC 12V
Working current: 110mA
Installation hole:212(L)*35(W)
Deep into wall around 43mm
Panel dimension:205×34×42mm(L×W×H)
LC03 Electromagnetic lock
Power: DC 12V
Working current: 180mA
With the function of locking the access device, it uses with access control,and equip with bracket for installation.
LC04 Electromagnetic lock
Power: DC 12V
Working current: 960mA
Load weight:180kgs
The product uses with access control device , it can be installed on glass doors ,wooden doors, iron gate or fireproof doors.
DS01 Auto door disable switch
Power:AC/DC12~36V
Panel size:160(L)*120(W)*15(H)mm
Stainless steel panel design,easy operation with key to choose different functions including: Emergency opening, Automatic and Full lock. Suitable for automatic door of disable-person washroom or washroom management of building.
MCR Magnetic card reader
Input voltage:DC12V
Storage capacity: 5600 cards
Dimension:138*56*32mm (L*W*H)
The product can be widely used as exit switch for bank VIP room.With the authorized card controlled by Magnetic card reader access controller, only some people have the right to enter..Online working or offline working is available.
GC01 Glass clamp(20cm)
Connect glass door panel and hanger
2pcs for 1 door leaf
GC02 Glass clamp(1m)
Connect glass and hangers for frameless glass door
One pc for one glass door leaf
FG01 Framed door guider(rubber or brush type optional)
10-40mm
FG02 Framed door guider(rubber or brush type optional)
30-60mm
FG03 Frameless glass door guider
Max. 15mm

R&D Team and Manufacturing
YIWAN has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.
Factory
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)

Sales & Services
Hefei Yiwan Architectural Decoration Engineering Co., Ltd.takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

YIWAN have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

Package
Standard(Assembly completely)
4230×210×140mm, 31kg
Kit package(Track separate packing)
4230×210×130mm,18kg
680×280×180mm, 12.2kg
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)
OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
YIWAN will never stop the pursuit of innovation with style. YIWAN would develop more innovative and market-oriented products in the future.

YIWAN Competitive Advantages
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying customers' most demanding needs
2. Our products have World Class Quality Testing. We have certificates of SGS,CE, ISO9001.
3. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
4. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.
5. We have large production capability and sufficient safety stock to ensure quick lead-time.
6. We are constantly innovating to launch new products every year.
7. We provide 24-month warranty for all of our products.
Automatic Sliding Door Operator System with Remoter and Photocell (YW-155)FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Send your inquiry directly to us

Privacy Policy China Good Quality Automatic Sliding Door System Supplier. Copyright © 2023-2024 autoslidingdoors.com . All Rights Reserved.
