Place of Origin:
China
Brand Name:
YIWAN
Certification:
CE, ISO, SGS
Model Number:
YW-155
Contact Us

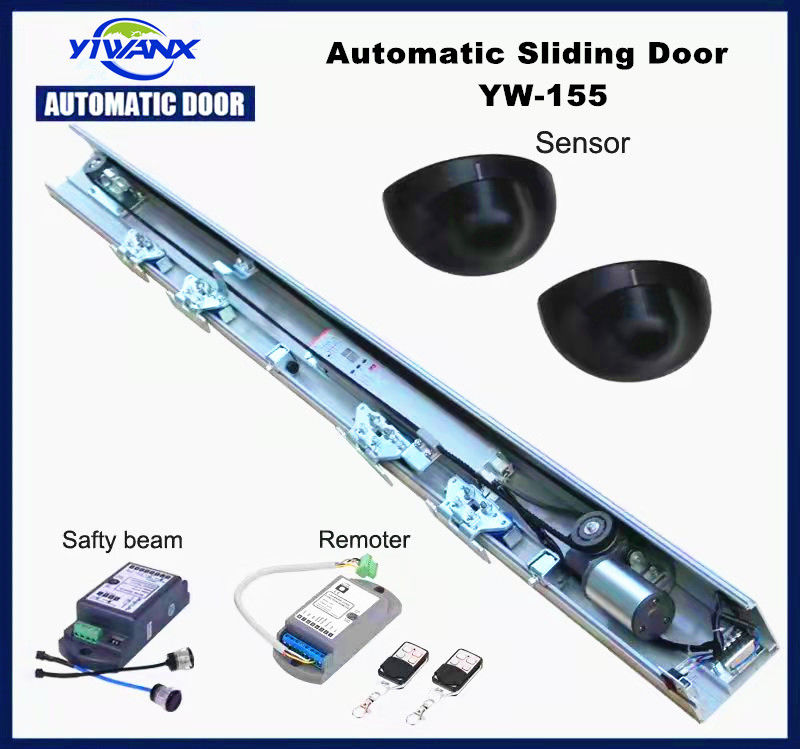

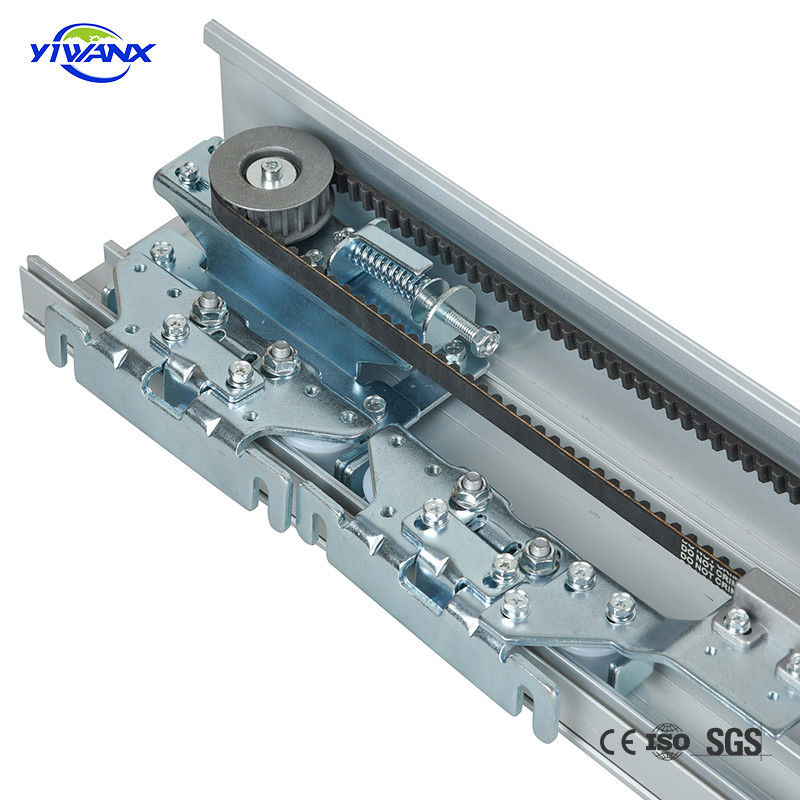

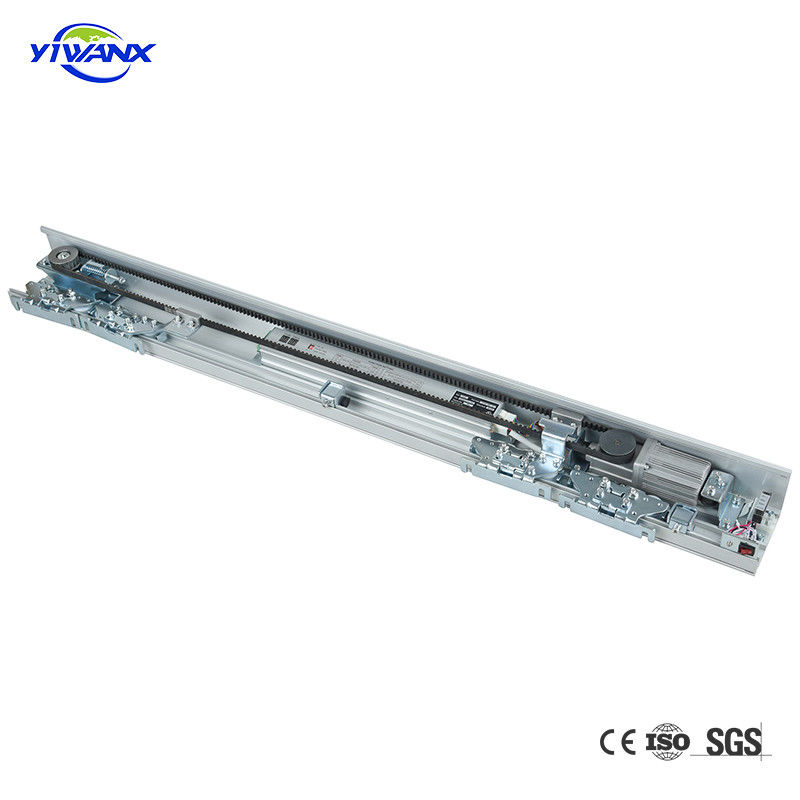

Biparting Commercial Glass Automatic Sliding Door System With 4.2m Alminium Track
Gate sliding modes | Single-opening | Double-opening |
Gate leaf weight | ≤1*155 kg | ≤2*145 kg |
Gate leaf width | 600-1200mm | 500-1100mm |
Opening speed | 150-600mm/s(Adjustable) | 150-550mm/s(Adjustable) |
Closing speed | 120-550mm/s(Adjustable) | 120-500mm/s(Adjustable) |
Motor | 24V 60/100W brushless DC motor | |
Hold open time | 0-9second(Adjustable) | |
Special Function | Anti-Pinch Function | |
Voltage | AC220V 50Hz-60Hz | |
Operating Temperature | -20°C~60°C |
Place of Origin | Anhui, China (Mainland) |
Brand Name | YIWANX |
Model Number | YW-155 |
Open Style | Automatic induction |
Position | Commercial premises, hotels, banks, office buildings |
Surface Finishing | Finished |
Type | Sliding Doors |
Sliding Door Type | Single-leaf of bi-parting glass doors |
Door Material | Glass |
Power supply | 220~230V,50/60HZ |
Model | Automatic Sliding Door |

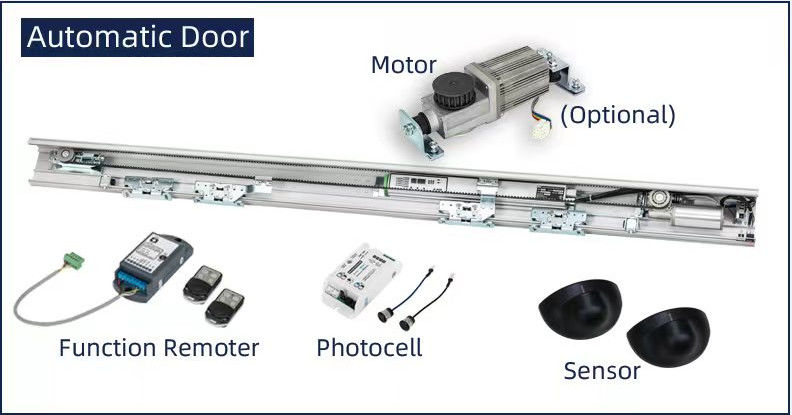

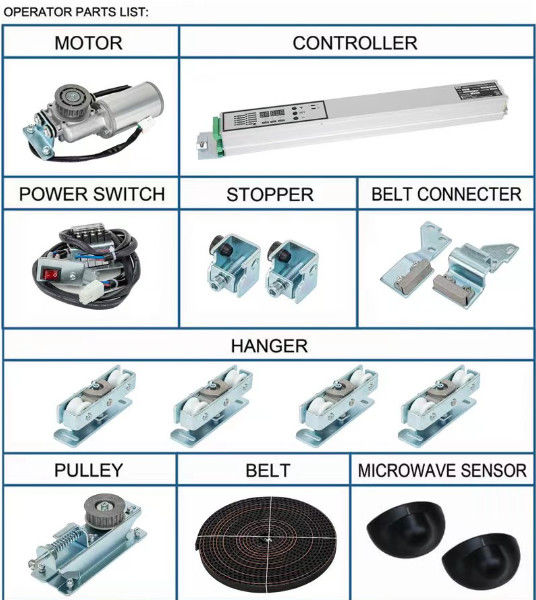

Standard packing list | |
55W/100W Round Type Motor | 1 |
Digital Controller | 1 |
Microwave motion sensor | 2 |
Driven wheel / Idler pulley | 1 |
Connector | 1 |
Hangers | 4 |
Link span(left) | 1 |
Link span(right) | 1 |
Stopper | 2 (left/right) |
Belt tensioner | 1 |
Fastenings | 1 set |
Aluminium beam | 2×2.1m |
Installation Manual & Warranty Card | 1set |
Details of Optional accessories | ||
Model No. | Specification | |
MS01 | Microwave sensor(10GHZ/24GHZ) Power: AC/DC 12~36V Radio frequency:10.525GHZ/24.125GHZ Protection level: IP54 Size:131×61×46mm(L×W×H) Max installation height: 4M Detection range and sensibility can be adjusted. |
|
MS02 | Microwave sensor(10GHZ/24GHZ) Power: AC/DC 12~36V Radio frequency: 10.525GHZ/24.125GHZ Protection level: IP54 Size:110×64×42mm(L×W×H) Max installation height: 4M Detection range and sensibility can be adjusted. |
|
MS03 | Microwave Sensor(24GHZ) with German Innosent Chip Power: AC/DC 12~36V Radio frequency: 24.125GHZ Protection level: IP54 Size:121×80×51mm(L×W×H) Max installation height: 4M Detection range and sensibility can be adjusted. |
|
IS01 | Infrared sensor Power: AC/DC 12~36V Sensing distance:0.2m-2m Protection level: IP54 Size:221×74×35mm(L×W×H) Max installation height: 3M Detection range and sensibility can be adjusted. The product can be used in the occasion where the building environment is narrow and close to street and the accuracy detection ability is demanded .Detection sensing distance adjustable, with high anti-interference , easy operation and reliable |
|
IS02 | Combined microwave&infrared sensor Power:AC/DC 12~36V Transmitting frequency:24.125GHZ Protection level:IP54 Size:262×55×44mm(L×W×H) Max installation height: 3M Combined radar activation and Infrared safety sensor is used for automatic sliding door, folding door and curve door. Radar technology is for door activation. Infrared technology is for door safety entrance. Unique anti-clip function design, no need extra safety beam sensors. Have function of background self-learn. Can learn background automatically when power on. Suit all kinds of occasions.Always self-correcting once be influenced by quake, distortion, move, dark and sunshine. Ensure the sensor can work durable. Microwave technology adopts the Germany Microwave sensor module, not influenced by temperature and humidity with reliable working performance. |
|
PT01 | Safety beam(photocell) Power:AC/DC12~36V Max transmission distance: 10m Type: single beam(one pair eyes)/ double beam(2 pairs eyes) Receiver dimension:123*50*32mm Electric eyes:19(length)*13(diameter)mm |
|
FS01 | Foot sensor switch Power:AC/DC12~36V Recommended installation height: 0.3M from the ground Active infrared ray of modulation-demodulation controlled by microcomputer. Widely used in the operating room of hospital and laboratory to prevent hand pollution. |
|
FC01 | Five-range programmed function switch Power: 12~36V Function status: full open, half open, exit only, lock, automatic Size:113×63×20mm(L×W×H) function switch against passwords, safe and reliable. With memory function in case of power failure. Password can be reset.. |
|
FC02 | Five-range function keypad Power: 12~36V Functions: full open, half open, exit only, lock, automatic Size:86×86×10mm(L×W×H) |
|
KP01 | Function key switch(five-range) Power: AC/DC 18~36V Functions: full open, half open, exit only, lock, automatic Size:86×86×10mm(L×W×H) |
|
KP02 | LED key switch(five-range) Power: AC/DC18~36V Size:92×92×46mm(L×W×H) Functions: full open, half open, exit only, lock, automatic This product is unidirectional command switch for automatic door accessory using. With special design with bottom panel, it is convenient for different installation occasions. |
|
KP03 | Five-range LCD key switch Power: AC/DC12~36V Size:92×92×33mm(L×W×H) Functions: full open, half open, exit only, lock, automatic This product is unidirectional command switch for automatic door. With TFT true color liquid display, special design with bottom panel, it is convenient for different installation occasions. |
|
PB07 | Infrared hand sensor switch Power: AC/DC12~36V Size:92×92×33mm(L×W×H) Transmit distance: 1-20cm, can be set according to actual occasion. |
|
FC04 | Learning code remote control device(4 channels) Power: 24VDC 433MHZ Learning code type Transmission distance: 25M Function status: full open, half open,lock, automatic |
|
FC05 | Learning code remoter control device(4 channels) Power: 24VDC 433MHZ Learning code type Transmission distance: 25M Function status: full open, half open,lock, automatic |
|
FP01 | Fingerprint access control device / time attendance machine Power supply:12VDC Fingerprint capacity:1000 Recorded capacity:100,000 Dimension:180*82*53(L×W×H) Identification mode: Fingerprint / ID card / Password Voice prompt: available |
|
PB04 | No touch hand sensor switch Power: DC 12V Working type: infrared induction Working distance: 1-15cm, can be set according to actual occasion. Weight: 83g Size: 89×89×37mm(L×W×H) |
|
PB05 | Infrared touchless hand sensor switch Power: AC/DC12~36V Working type: infrared induction Transmit distance: 1-15cm, can be set according to actual occasion. Size:113×63×20mm(L×W×H) Weight: 110g |
|
PB06 | Wireless push button switch Power: AC/DC12~36V Hold open time:1-9S adjustable Pushing panel:203(L)*41(W)*12.5(H)mm Receiver:123(L)*50(W)*32(H)mm Widely be used for auto door and door control equipment. With the wireless signal output,door can be open by the pushing the panel. Easy installation,specially designed for the occasions which have difficulty in wire embedding. |
|
AK02 | Access keypad(plastic) Power: 12VDC User capacity: 500 users Open method:Card, password, both. 1000 pcs card info can be stored Dimension:117×117×21(mm) Specific designed for office, housing, security system and building's access . It not only can work by reading card or password ,but also can control electric lock and auto-door. |
|
AK03 | Access keypad Power: 12VDC Storage capacity: 1000 users Open method:Card, password, card+password. Dimension:115×75×21(mm) |
|
AK04 | Access keypad Power: 12VDC Storage capacity: 1000 users Open method:Card, password, card+password. Dimension:110×75×25(mm) |
|
FP02 | Finger printer(stainless) Power: DC 12V Memory capacity:120 Weight: 500g Size: 115×70×35mm(L×W×H) |
|
UPS | Automatic door backup lithium battery Input voltage:220VAC, 50HZ Output voltage:DC12V/5.2A, DC24V/2.6A Size: 243×59×45mm(L×W×H) When power off, it can make the door work 7 hours or open and close 500 times. |
|
PB03 | Wired push button switch(plastic) Weight: 96g Size: 200×50×12.5mm(L×W×H) |
|
PB02 | Wired push button switch(stainless) with blue LED Weight: 65g Size: 84×84×35mm(L×W×H) |
|
PB01 | Wired push button switch(stainless) with blue LED Weight:50g Size: 84×84×27mm(L×W×H) |
|
LC01 | Metal manual lock Lock manually, open with key. |
|
LC02 | Electric lock Power: DC 12V Working current: 110mA Installation hole:212(L)*35(W) Deep into wall around 43mm Panel dimension:205×34×42mm(L×W×H) |
|
LC03 | Electromagnetic lock Power: DC 12V Working current: 180mA With the function of locking the access device, it uses with access control,and equip with bracket for installation. |
|
LC04 | Electromagnetic lock Power: DC 12V Working current: 960mA Load weight:180kgs The product uses with access control device , it can be installed on glass doors ,wooden doors, iron gate or fireproof doors. |
|
DS01 | Auto door disable switch Power:AC/DC12~36V Panel size:160(L)*120(W)*15(H)mm Stainless steel panel design,easy operation with key to choose different functions including: Emergency opening, Automatic and Full lock. Suitable for automatic door of disable-person washroom or washroom management of building. |
|
MCR | Magnetic card reader Input voltage:DC12V Storage capacity: 5600 cards Dimension:138*56*32mm (L*W*H) The product can be widely used as exit switch for bank VIP room.With the authorized card controlled by Magnetic card reader access controller, only some people have the right to enter..Online working or offline working is available. |
|
GC01 | Glass clamp(20cm) Connect glass door panel and hanger 2pcs for 1 door leaf |
|
GC02 | Glass clamp(1m) Connect glass and hangers for frameless glass door One pc for one glass door leaf |
|
FG01 | Framed door guider(rubber or brush type optional) 10-40mm |
|
FG02 | Framed door guider(rubber or brush type optional) 30-60mm |
|
FG03 | Frameless glass door guider Max. 15mm |
R&D Team and Manufacturing
YIWAN has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.
Factory
Sales & Services
Hefei Yiwan Architectural Decoration Engineering Co., Ltd.takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.
YIWAN have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
Package
Standard(Assembly completely)
4230×210×140mm, 31kg
Kit package(Track separate packing)
4230×210×130mm,18kg
680×280×180mm, 12.2kg
OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
YIWAN will never stop the pursuit of innovation with style. YIWAN would develop more innovative and market-oriented products in the future.
YIWAN Competitive Advantages | |
1. | We are direct manufacturer & we have professional self design team, which is capable of satisfying customers' most demanding needs |
2. | Our products have World Class Quality Testing. We have certificates of SGS,CE, ISO9001. |
3. | We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation. |
4. | Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct. |
5. | We have large production capability and sufficient safety stock to ensure quick lead-time. |
6. | We are constantly innovating to launch new products every year. |
7. | We provide 24-month warranty for all of our products. |
