100W Intelligent Automatic Sliding Gate Opener Automated Door Systems

100W Intelligent Automatic Sliding Gate Opener Automated Door Systems

100W automatic sliding gate opener

automatic sliding gate opener

100W automated door systems

Place of Origin:

HeFei City,AnHui Province, China

Brand Name:

YIWANX

Certification:

CE, ISO, SGS

Model Number:

YW-195

Contact Us

Request A Quote
Product Details
Electric Current Type:
AC
Opening Time:
0-9second(Adjustable)
Opening Temperature:
-20~60
Motor Type:
24VDC 100W Brushless Motor
Product Weight:
25 KGs
Specification:
Customize
Origin:
Hefei, Anhui, China
Production Capacity:
30, 000 Sets Per Year
Payment & Shipping Terms
Minimum Order Quantity
10 sets
Price
US $375-435 / Set
Packaging Details
Inner Caron Box+Bubble Wrap+ Outer Carton Box
Delivery Time
15-25days
Payment Terms
T/T
Supply Ability
30, 000 Sets Per Year
RELATED PRODUCTS
Contact Us
Product Description

100W intelligent Automatic Sliding Gate Opener Automated Door Systems

Product Description

Automatic sliding door system(YW -195) is the best choice for heavy-load automatic sliding doors. With intelligent microcomputer controller, great power motor(100W), specially designed high-strength hangers, high quality hanger wheels(pulleys) and other durable items , it is widely used for special areas where heavy automatic sliding doors shall be applied, like laboratories, hospital operating rooms,etc .
Its strongest system works quite stably and powerfully.And the special design and strong structure makes it bear load max.200kgs.
With creative product design, sophisticated production technology and professional services,YW-195 automatic sliding door system perfectly combines high-end technology with modern life style, and fully meets the requirements of the urban honorable life.It is the best seller in European market, and the toppest choice among similarly competing products.

Basic Info.

Model NO.
YW-195
Electric Current Type
AC
Means of Transportion
Ocean, Air
Opening Time
0-9second(Adjustable)
Voltage
AC220V 50Hz-60Hz
Opening Temperature
-20~60
Special Features
Anti-Pinch Function
Motor Type
24VDC 100W Brushless Motor
Bear Load
Max.200kgs
Peak Seaon Lead Time
15-25 Days
off Season Lead Time
7-15 Days
Product Weight
25kgs
Transport Package
Inner Caron Box+Bubble Wrap+ Outer Carton Box
Specification
customize
Trademark
yiwanx
Origin
Hefei, Anhui, China
HS Code
90328990
Production Capacity
30, 000 Sets Per Year

Packaging & Delivery

Package size per unit product
423.00cm * 21.00cm * 14.00cm
Gross weight per unit product
31.000kg

Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)

Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)Technical Data of Automatic Sliding Door System (YW-195):
Door sliding modes Single-opening Double-opening
Door leaf weight ≤1*195 kg ≤2*190 kg
Door leaf width 600-1200mm 500-1150mm
Opening speed 200-650mm/s(Adjustable) 200-600mm/s(Adjustable)
Closing speed 150-550mm/s(Adjustable) 150-550mm/s(Adjustable)
Motor 24V 100W brushless DC motor
Opening time 0-9s(Adjustable)
Automatic function Automatically reverse upon obstruction
Voltage AC220V 50Hz-60Hz
Ambient temperature -20°C~60°C
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)
Features:
**Microcomputer intelligent control and advanced mechanical configuration.
**Work at a range of power supply , low power consumption, energy-saving standby mode
**Intelligent control system, adjustable parameters
**Low noise drive unit,simple and convenient installation
**Advanced brushless motor and worm gear reducer integration , high efficiency, great torque, no powder pollution,quick in speed up and down, long service life.
**The unique self-locking function, need not extra accessories, full function remote control device, safe and reliable.
**Safety sensor, ensure safe passage
**Has a variety of trigger way to open the door
**In the event of a power failure, use the backup batteries to keep the door in normal operation.
**Self-locking function, when the door is fully closed , keep the state.

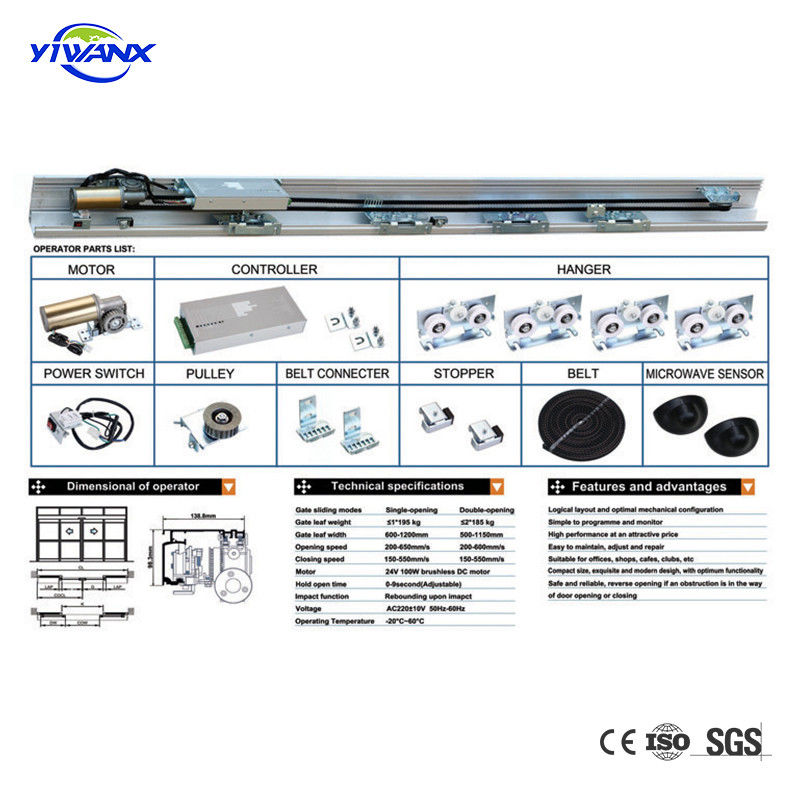

Components list of Automatic Sliding Door System (YW-195):
Standard packing list
100W Motor 1
Controller 1
Microwave motion sensor 2
Driven wheel / Idler pulley 1
Connector 1
Hangers 4
Link span(left) 1
Link span(right) 1
Stopper 2 (left/right)
Belt tensioner 1
Fastenings 1 set
Aluminium beam 2×2.1m
Installation Manual & Warranty Card 1set
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)

Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)Optional accessories:
Details of Optional accessories
Model No. Specification
PT01
Safety beam(photocell)
Power: DC12~36V
Max transmission dist
Type: single beam(one pair eyes)
AK02 Access keypad(plastic)
Power: 12VDC
User capacity: 500 users
FC04 Remoter(4 buttons)
Power: 12~36V
433MHZ Learning code type
Transmission distance: 25M
Function status: full open, half open,
lock, automatic
FP02 Finger printer(stainless)
Power: DC 12V
Weight: 500g
Size: 115×70×35mm(L×W×H)
UPS Backup battery
One set of changing electronic part
and two pcs 12V battery.
When power off, it can make the door work 3 hours
or open and close 100 times.
PB03 Wired push button switch(plastic)
Weight: 96g
Size: 200×50×12.5mm(L×W×H)
LC02 Electric lock
Power: DC 12V
Working current: 800mA
Installation hole:212(L)*35(W)
Deep into wall around 43mm Panel dimension:205×34×42mm(L×W×H)
PB04 Touchless switch
Power: DC 12V
Working type: infrared induction
Working distance: 1-15cm
Weight: 83g
Size: 89×89×37mm(L×W×H)
FG01 Framed door guider
Max. 40mm
GC02 Glass clamp(1m)
Connect glass and hangers for
frameless glass door
One pc for one glass door leaf

R&D Team and Manufacturing
YIWAN has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.
Factory
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)
Sales & Services
Hefei Yiwan Architectural Decoration Engineering Co., Ltd. takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

YIWAN have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
Package
Standard(Assembly completely)
4230×210×140mm, 31kg
Kit package(Track separate packing)
4230×210×130mm,18kg
680×280×180mm, 12.2kg
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)
OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
YIWAN will never stop the pursuit of innovation with style. YIWAN would develop more innovative and market-oriented products in the future.

YIWAN Competitive Advantages
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying customers' most demanding needs
2. Our products have World Class Quality Testing. We have certificates of SGS,CE, ISO9001.
3. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
4. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.
5. We have large production capability and sufficient safety stock to ensure quick lead-time.
6. We are constantly innovating to launch new products every year.
7. We provide 24-month warranty for all of our products.
Heavy Duty Sliding Door Track System, Aluminium Automatic Sliding Glass Gate Operator System (YW-195)FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
