Place of Origin:
Hefei Anhui Province, China
Brand Name:
yiwan
Model Number:
automatic revolving door
Contact Us

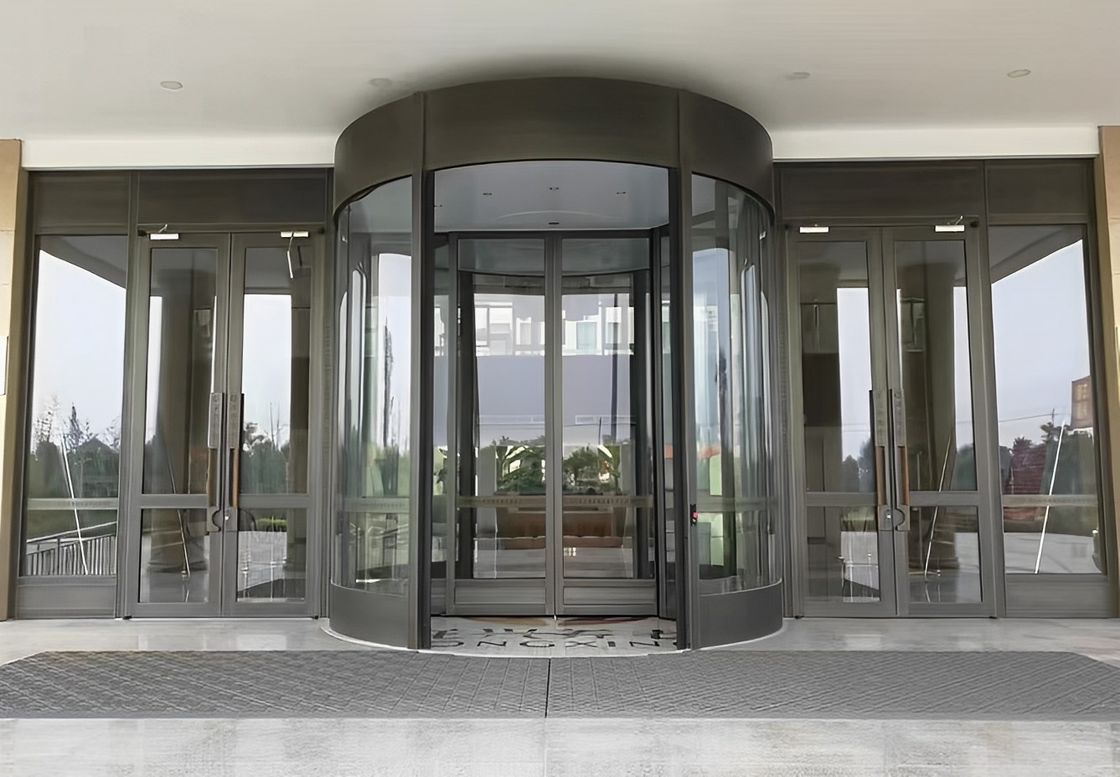

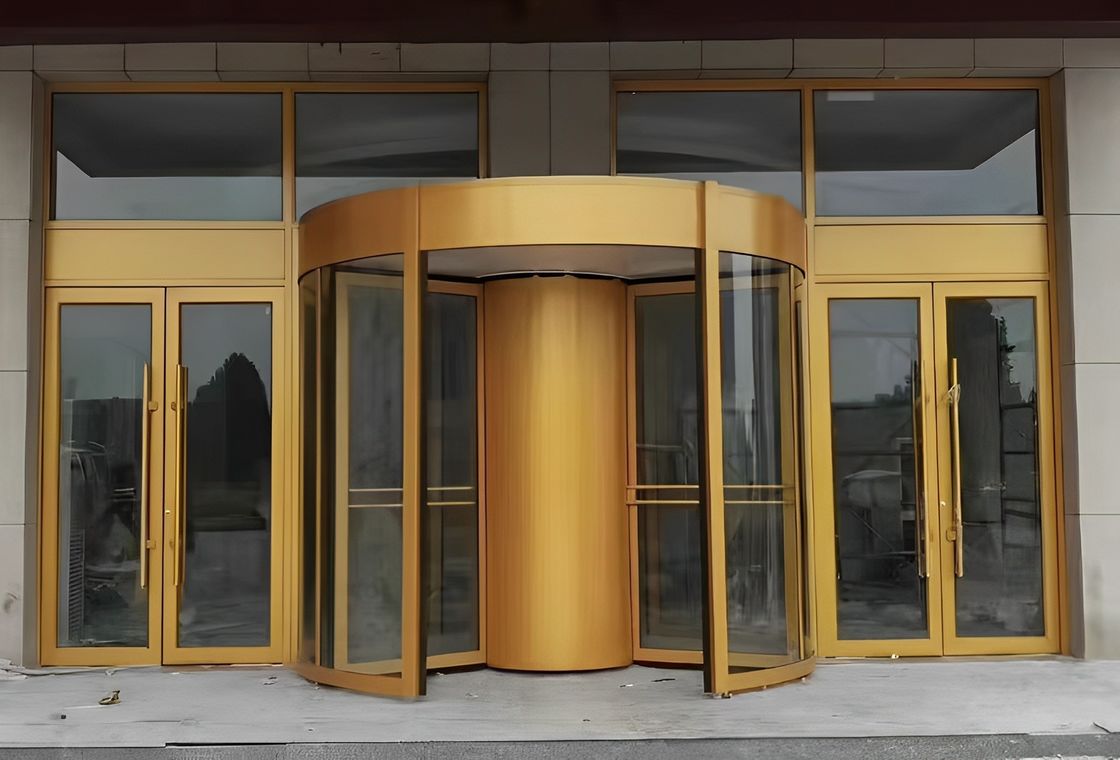

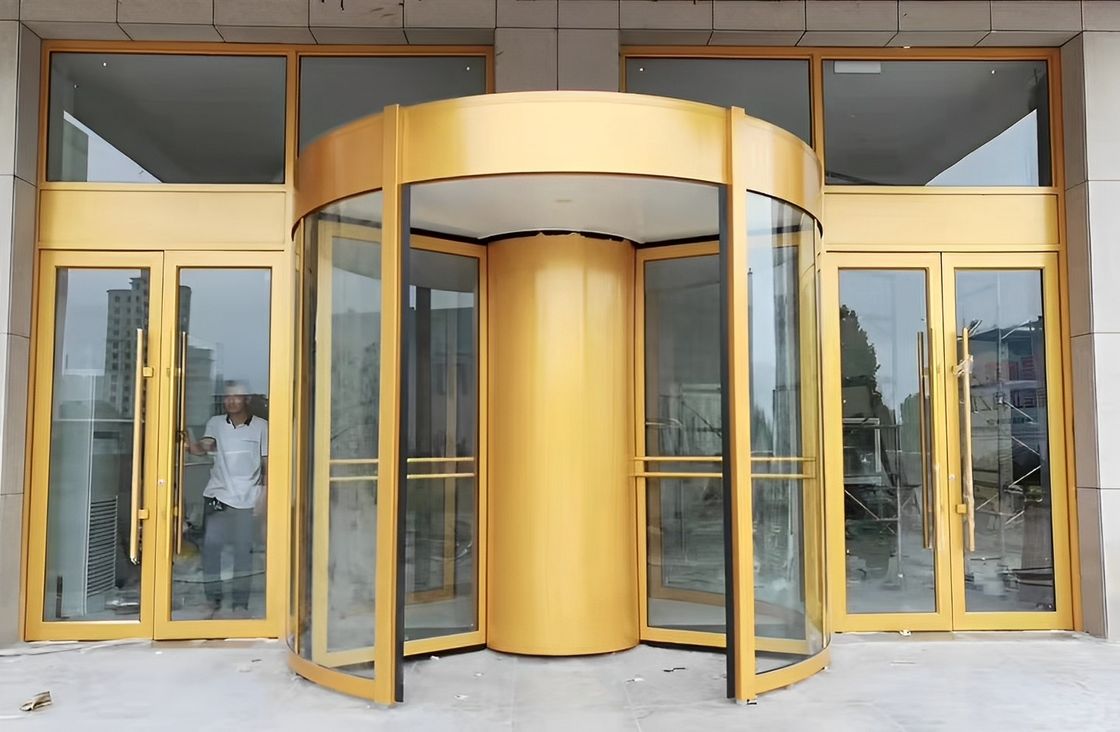

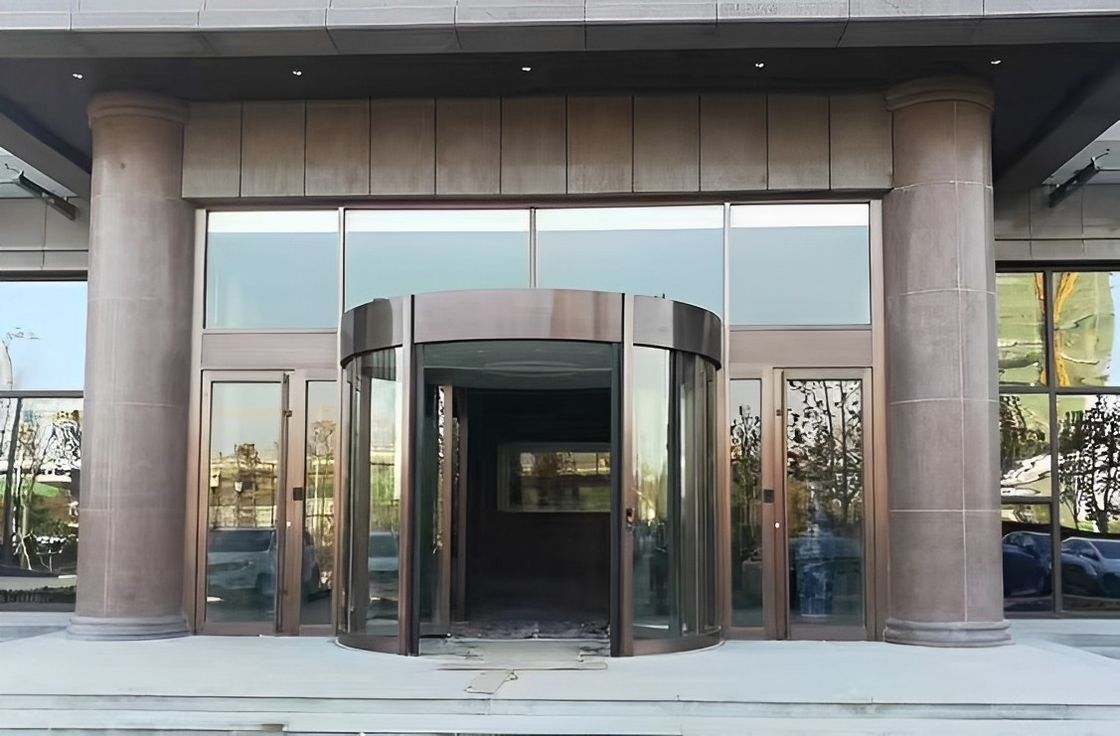

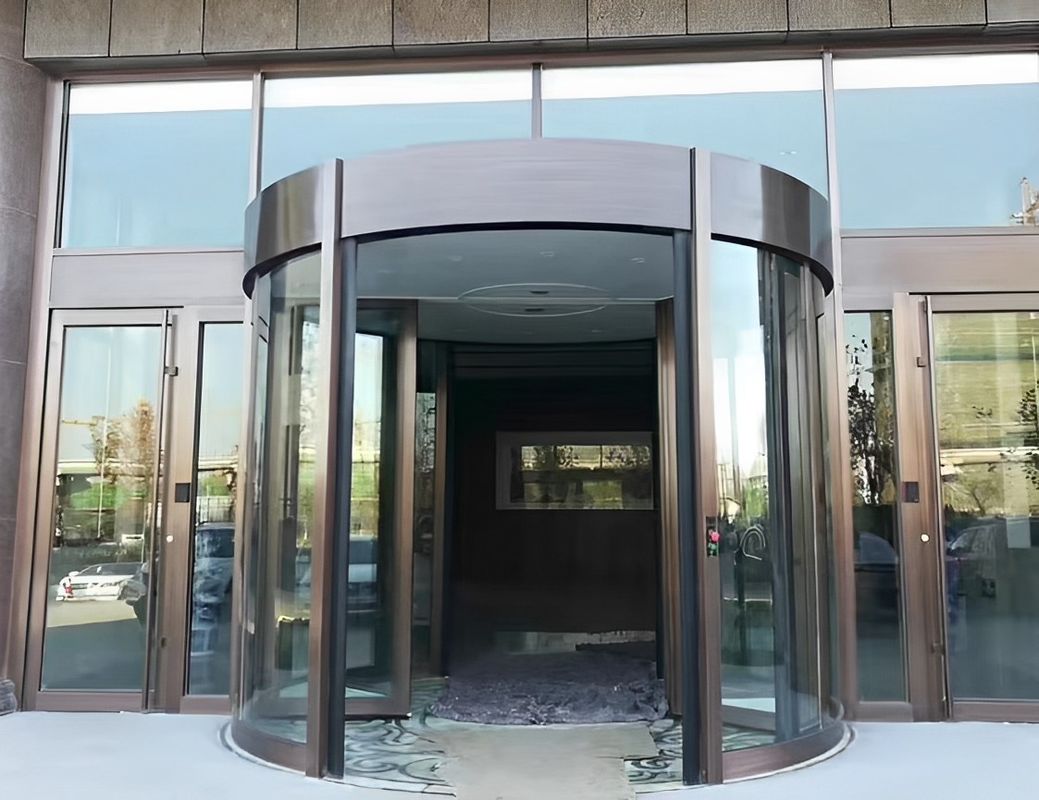

Yiwan Two-wing Revolving Door is the perfect solution for keeping dust, noise, rain, sleet and snow from entering buildings, which effect energy efficient and enviroment protection; Under the sliding door status, the more capacious and comfortable passage is available for large crowds traffic flow.
Two-wing Automatic Revolving Door is the best option for the main entrance of grand commercial buildings such as the hotel, office buildings, shopping malls, exhibition center, because of its excellent characters e.g. the splendid and noble appearance, stable and reliable operation, exquisite technology, safety in use.
Outer Diameter(mm) | Inner Diameter(mm) | Passage Height(mm) | Canopy Height(mm) | Total Height(mm) | Entrance Width(mm) |
3000 | 2810 | 2300-3300 | 300-600 | 2400-4000 | 1328 |
3200 | 3010 | 1428 | |||
3400 | 3210 | 1528 | |||
3600 | 3410 | 1628 | |||
3800 | 3610 | 1728 | |||
4000 | 3810 | 1828 | |||
4200 | 4010 | 1928 | |||
4400 | 4210 | 2028 | |||
4600 | 4410 | 2128 | |||
4800 | 4610 |
2228
|
Aluminum alloy die-casting molding frame, high strength, bright color, good surface finish.
A variety of materials and colors of surface decoration available: hair lines stainless steel, mirror stainless steel, aluminum
fluorocarbon spraying, anodic oxidation, copper decoration etc.
The glass adopts tempered glass or special glass.
The ceiling is composed of radial wedge-shaped panels that coordinate with the material and decoration of the entire door.
Canopy made with plywood or metal plate for dustproof, outside made sealed for shower-proofing.
Energy saving, quiet, stable, long service life.
Digital program control system, easy operation.
Anti-squeeze function, anti-strike function and safety detection functions.
Slow speed for disabled. When the aged, children or disabled passing the door, press the emergency button, the door speed will slow
down and rotate for 1 round, after that restore their normal function.
Revolving speed automatic lifting and adjusting function. Change the sensor condition according to the weather and visitors flow rate, to save time and energy.
Product Features and Functions:
External Framework Bearing
Two working models: revolving door, Sliding door
Windbreak,Dust Proof and Noise Insulation Function which effect the energy conservation and environment protection
Safety : Anti-bump,anti-squeeze,anti-strike
Access Control Function
Operation modes Selection
the Emergency Stop Button
the Disable Button
Battery Backup
Lockup/Night Function
Stop as Open State
Stop as Close State
Speed adjustable
Revers Function
Fire Alarm
Two Show cases
LED Display
Digital control system, easy to operate.
Technical Data
Power supply : 220V/50Hz
Rated current : 3.8A
Motor : 370W*2
Revolving door drive unit : 550W
Down lights : 40W
High speed adjustment range(revolving door) : 3- 4 r.p.m
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m
Aluminum thickness≥3mm
System: Panasonic(Japan)
Glass: 6-8mm Glass
Surface treatment: #304 1.2mm Stainless Steel (Colour: optional)
Ceiling: Powder coated 1.2mm Aluminum Plate
Light: Energy-saving lamp
Dustproof Plate: 12mm Density Board,
Control Operation LCD Panel: Panasonic Digital LCD screen,display and control the operation status of the door
Push Button: 1 set for each door(Install inside)
